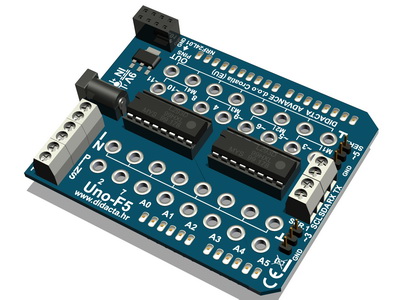

Uno-F5 board ( Arduino UNO - fischertehnik ) power conn. 5.2 x 2.1 mm
22.00
Discount for bigger quantity.
Specification: Power DC connector 6 - 9V, 9V battery conn., output 5v and 3.3V, conn. for wireles modul NRF24L01, 8x OUTPUT - max 600 mA for each output (depending on input voltage), 4 x DC motor or 8 x LED, 8 x INPUTS ( outputs ) - 2 x digital, 6 x analog, TX + RX, I2C, , 2 x SERVO ( 5V ). Board for Arduino UNO. All inputs are with PULL UP resistors ( HIGH state ). Max. VOLTAGE on INPUTS MAX. 9V.
ROB00155
Uno-F5 board ( Arduino UNO - fischertehnik ) power conn. 3.5 x 1.3 mm
22.00
Discount for bigger quantity.
Specification: Power DC connector 6 - 9V, 9V battery conn., output 5v and 3.3V, conn. for wireles modul NRF24L01, 8x OUTPUT - max 600 mA for each output (depending on input voltage), 4 x DC motor or 8 x LED, 8 x INPUTS ( outputs ) - 2 x digital, 6 x analog, TX + RX, I2C, , 2 x SERVO ( 5V ). Board for Arduino UNO. All inputs are with PULL UP resistors ( HIGH state ). Max. VOLTAGE on INPUTS MAX. 9V.
ROB00160

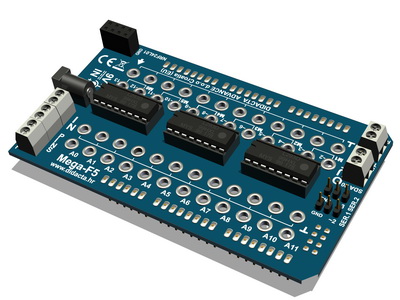

Mega-F5 board ( Arduino MEGA - fischertehnik ) power conn. 5.2 x 2.1 mm
33.66
Discount for bigger quantity.
Board for Arduino MEGA (256). Specification: Power DC connector 6 - 9V, 9V battery conn., output 5v and 3.3V, conn. for wireles modul NRF24L01, 12x OUTPUT - max 600 mA for each output (depending on input voltage), 6 x DC motor ( 5 x PWM ) or 12 x LED, 12 x INPUTS ( outputs ) - 12 x analog/digital, TX + RX, I2C, 2 x SERVO ( 5V ). All inputs are with PULL UP resistors ( HIGH state ). VOLTAGE on INPUTS MAX. 9V.
ROB00162
Mega-F5 board ( Arduino MEGA - fischertehnik ) power conn. 3.5 x 1.3 mm
33.66
Discount for bigger quantity.
Board for Arduino MEGA (256). Specification: Power DC connector 6 - 9V, 9V battery conn., output 5v and 3.3V, conn. for wireles modul NRF24L01, 12x OUTPUT - max 600 mA for each output (depending on input voltage), 6 x DC motor ( 5 x PWM ) or 12 x LED, 12 x INPUTS ( outputs ) - 12 x analog/digital, TX + RX, I2C, 2 x SERVO ( 5V ). All inputs are with PULL UP resistors ( HIGH state ). VOLTAGE on INPUTS MAX. 9V.
ROB00191

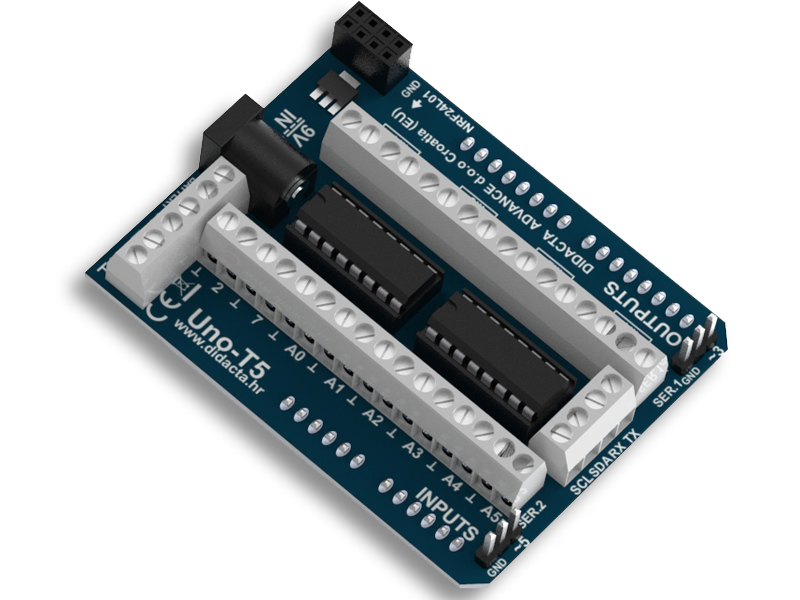

Uno-T5 board ( Arduino UNO - fischertehnik ) power conn. 5.2 x 2.1 mm
23.44
Discount for bigger quantity.
Specification: Power DC connector 6 - 9V, 9V battery conn., output 5v and 3.3V, conn. for wireles modul NRF24L01, 8x OUTPUT - max 600 mA for each output (depending on input voltage), 4 x DC motor or 8 x LED, 8 x INPUTS ( outputs ) - 2 x digital, 6 x analog, TX + RX, I2C, , 2 x SERVO ( 5V ). Board for Arduino UNO. All inputs are with PULL UP resistors ( HIGH state ). Max. VOLTAGE on INPUTS MAX.9V.
ROB00192
Uno-T5 board ( Arduino UNO - fischertehnik ) power conn. 3.5 x 1.3 mm
23.44
Discount for bigger quantity.
Specification: Power DC connector 6 - 9V, 9V battery conn., output 5v and 3.3V, conn. for wireles modul NRF24L01, 8x OUTPUT - max 600 mA for each output (depending on input voltage), 4 x DC motor or 8 x LED, 8 x INPUTS ( outputs ) - 2 x digital, 6 x analog, TX + RX, I2C, , 2 x SERVO ( 5V ). Board for Arduino UNO. All inputs are with PULL UP resistors ( HIGH state ). Max. VOLTAGE on INPUTS MAX.9V.
ROB00195

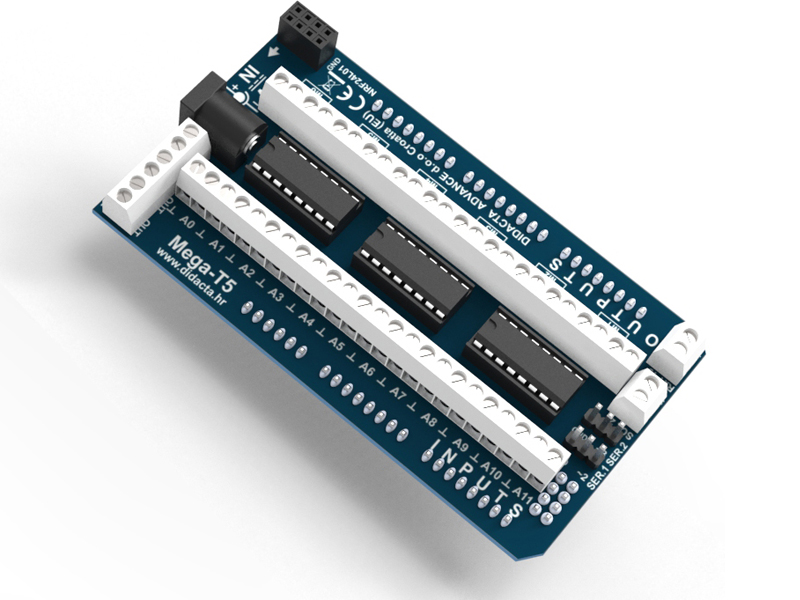

Mega-T5 board ( Arduino MEGA - fischertehnik ) power conn. 5.2 x 2.1 mm
30.00
Discount for bigger quantity.
Board for Arduino MEGA (256). Specification: Power DC connector 6 - 9V, 9V battery conn., output 5v and 3.3V, conn. for wireles modul NRF24L01, 12x OUTPUT - max 600 mA for each output (depending on input voltage), 6 x DC motor ( 5 x PWM ) or 12 x LED, 12 x INPUTS ( outputs ) - 12 x analog/digital, TX + RX, I2C, 2 x SERVO ( 5V ). All inputs are with PULL UP resistors ( HIGH state ). VOLTAGE on INPUTS MAX. 9V.
ROB00196
Mega-T5 board ( Arduino MEGA - fischertehnik ) power conn. 3.5 x 1.3 mm
30.00
Discount for bigger quantity.
Board for Arduino MEGA (256). Specification: Power DC connector 6 - 9V, 9V battery conn., output 5v and 3.3V, conn. for wireles modul NRF24L01, 12x OUTPUT - max 600 mA for each output (depending on input voltage), 6 x DC motor ( 5 x PWM ) or 12 x LED, 12 x INPUTS ( outputs ) - 12 x analog/digital, TX + RX, I2C, 2 x SERVO ( 5V ). All inputs are with PULL UP resistors ( HIGH state ). VOLTAGE on INPUTS MAX. 9V.
