Raspberry pi boards and accessories

1/2

		Article number	Name		Price €	(inc. VAT 25%)

SKL00061

Raspberry 4 - B 4GB

74.05

PCS:

Processor: ), (Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz), (Memory: ), (4GB LPDDR4), (Connectivity: ), (2.4 GHz and 5.0 GHz IEEE 802.11b/g/n/ac wireless LAN, Bluetooth 5.0, BLE Gigabit Ethernet ), (2 × USB 3.0 ports ), (2 × USB 2.0 ports.), (GPIO: ), (Standard 40-pin GPIO header (fully backwards-compatible with previous boards)), (Video & sound: ), (- 2 × micro HDMI ports (up to 4Kp60 supported)), (- 2-lane MIPI DSI display port), (-

2-lane MIPI CSI camera port), (- 4-pole stereo audio and composite video port), (Multimedia: ), (- H.265 (4Kp60 decode); ), (- H.264 (1080p60 decode, 1080p30 encode); ), (- OpenGL ES, 3.0 graphics), (SD card support: ), (- Micro SD card slot for loading operating system and data storage), (Input power: ), (- 5V DC via USB-C connector (minimum 3A1)), (- 5V DC via GPIO header (minimum 3A1)), (- Power over Ethernet (PoE)–enabled (requires separate PoE HAT)

ROB00166

Pi-F5 - interface for Raspberry Pi (connector 5.2 x 2.1)

42.40

PCS:

Discount for bigger quantity.

Interface specification: 8 x OUTPUTS (max 600mA), 8 x Digital INPUTS, 4 x Anlogue INPUTS, 2 x SERVO connector (5V), supply connectors (OUT) - 1 x 5V i 1 x 3,3V, 1 x UART connector (TX,RX), 1 x i2C connector, power supply connector for Raspberry and Interface ( 5.2 x 2.1 mm ), 1 x connector for 9V battery ( min. 1800 mA ). Interface dimension 73 x 62 mm. The interface is compatible with all Raspberry models that have a compatible connector with version 3. The adapter requires a min. 2500 mA 9V. VOLTAGE on INPUTS MAX. 9V.

ROB00167

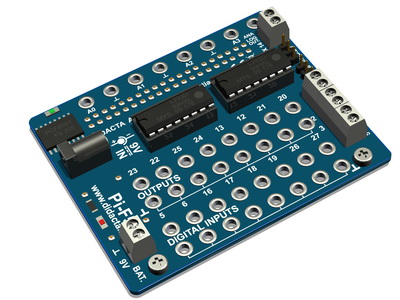

Pi-F5 - interface for Raspberry Pi (connector 3.5 x 1.3)

42.40

PCS:

Discount for bigger quantity.

Interface specification: 8 x OUTPUTS (max 600mA), 8 x Digital INPUTS, 4 x Anlogue INPUTS, 2 x SERVO connector (5V), supply connectors (OUT) - 1 x 5V i 1 x 3,3V, 1 x UART connector (TX,RX), 1 x i2C connector, power supply connector for Raspberry and Interface ( 3.5 x 1.3 mm ), 1 x connector for 9V battery ( min. 1800 mA ). Interface dimension 73 x 62 mm. The interface is compatible with all Raspberry models that have a compatible connector with version 3. The adapter requires a min. 2500 mA 9V. VOLTAGE on INPUTS MAX. 9V.

ROB00202

Pi-T5 - interface for Raspberry Pi (connector 5.2 x 2.1)

35.62

PCS:

Discount for bigger quantity.

). Interface dimension 73 x 62 mm. The interface is compatible with all Raspberry models that have a compatible connector with version 3. The adapter requires a min. 2500 mA 9V. VOLTAGE on INPUTS MAX. 9V. Separate connector (5V) to power the SERVO motor. SERVO motors can also be used with the Raspberry Pi 4 interface.

ROB00203

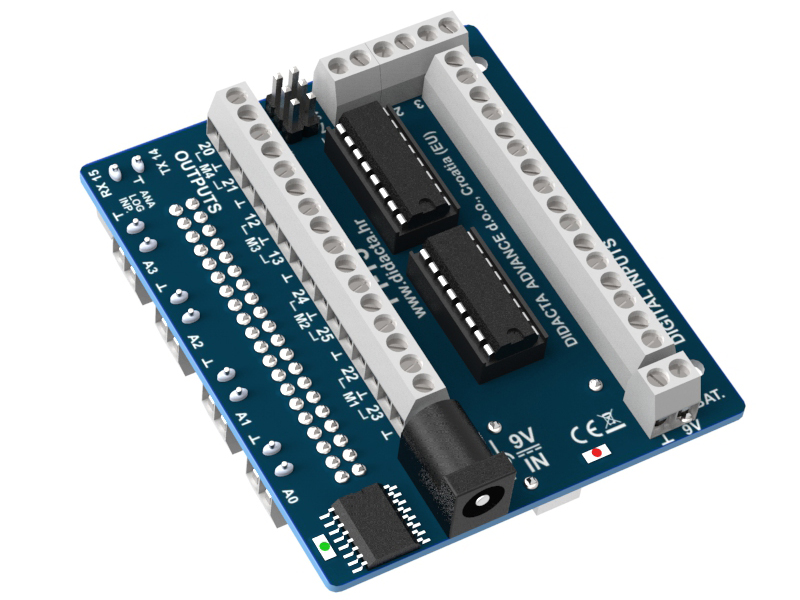

Pi-T5 - interface for Raspberry Pi (connector 3.5 x 1.3)

35.62

PCS:

Discount for bigger quantity.

ROB00174

X holder V2 for Raspberry Pi 3B, 3B+ (3D print)

5.00

PCS:

ROB00175

X holder V2 for Raspberry Pi 3A, 3A+ (3D print)

5.00

PCS:

ROB00176

X holder V2 for Raspberry Pi Zero (3D print)

5.00

PCS:

ROB00173

X holder V1 for Raspberry Pi 3B, 3B+ (3D print)

5.00

PCS:

ROB00128

ULTRASOUND sensor 3.3V - 5V

7.21

PCS:

Connect red and green wire to 3.3V or 5V power output. Micro:bit connecting: Blue wire (echo) to P3 and black wire (trig) to input P0 . Need to add package "SONAR". For Arduino and Raspberry BLUE wire = ECHO, BLACK wire = TRIG.

Finde art.nr.:	Articles on page:				1/2
